Ultra Thin Bezel Fresnel ALR Screen
Engineered for standard throw projectors, the Cynthiascreen Fresnel ALR Screen delivers exceptional brightness, contrast, and ambient light rejection for premium viewing experiences. The advanced Fresnel optical structure effectively rejects overhead and side ambient light while directing projector light toward the viewer, ensuring vivid colors, deeper blacks, and outstanding image clarity even in bright environments.Ideal for home theaters, living rooms, conference spaces, and commercial display applications, this screen combines superior optical performance with a sleek fixed frame design for a truly immersive large-screen experience.
Designed for Standard Throw Projectors
Superior Ambient Light Rejection Technology
Peak Gain: 1.6
Enhanced Contrast & Deep Black Performance
4K / 8K Ultra HD Compatible
Accurate Color Reproduction
Slim Fixed Frame Design
Wide Viewing Angle
Custom Sizes Available
OEM & ODM Manufacturing Support
Fresnel ALR Fixed Frame Screen
The Cynthiascreen Fresnel ALR Fixed Frame Screen is engineered to deliver exceptional image quality for standard throw and long throw projectors in environments where ambient light control is challenging. Utilizing advanced Fresnel optical technology, the screen effectively enhances projected light while reducing the impact of surrounding ambient light, resulting in brighter images, improved contrast, and superior visual clarity.
The specially designed Fresnel surface structure directs projected light toward the viewing area, helping to preserve image brightness and color accuracy even in living rooms, conference rooms, and other spaces with moderate ambient lighting. Compared to traditional matte white screens, the Fresnel ALR surface significantly improves black levels and overall picture depth, creating a more immersive viewing experience.
Designed to support modern projection systems, the screen is fully compatible with 4K, 8K, and HDR content, allowing users to enjoy sharper details, richer colors, and enhanced dynamic range. The slim fixed frame design ensures excellent screen flatness while providing a premium appearance suitable for both residential and commercial installations.
Whether used for home entertainment, corporate presentations, educational facilities, or commercial display applications, the Cynthiascreen Fresnel ALR Fixed Frame Screen offers a professional-grade projection solution that combines advanced optical performance with elegant design.
Fresnel ALR Screen Material

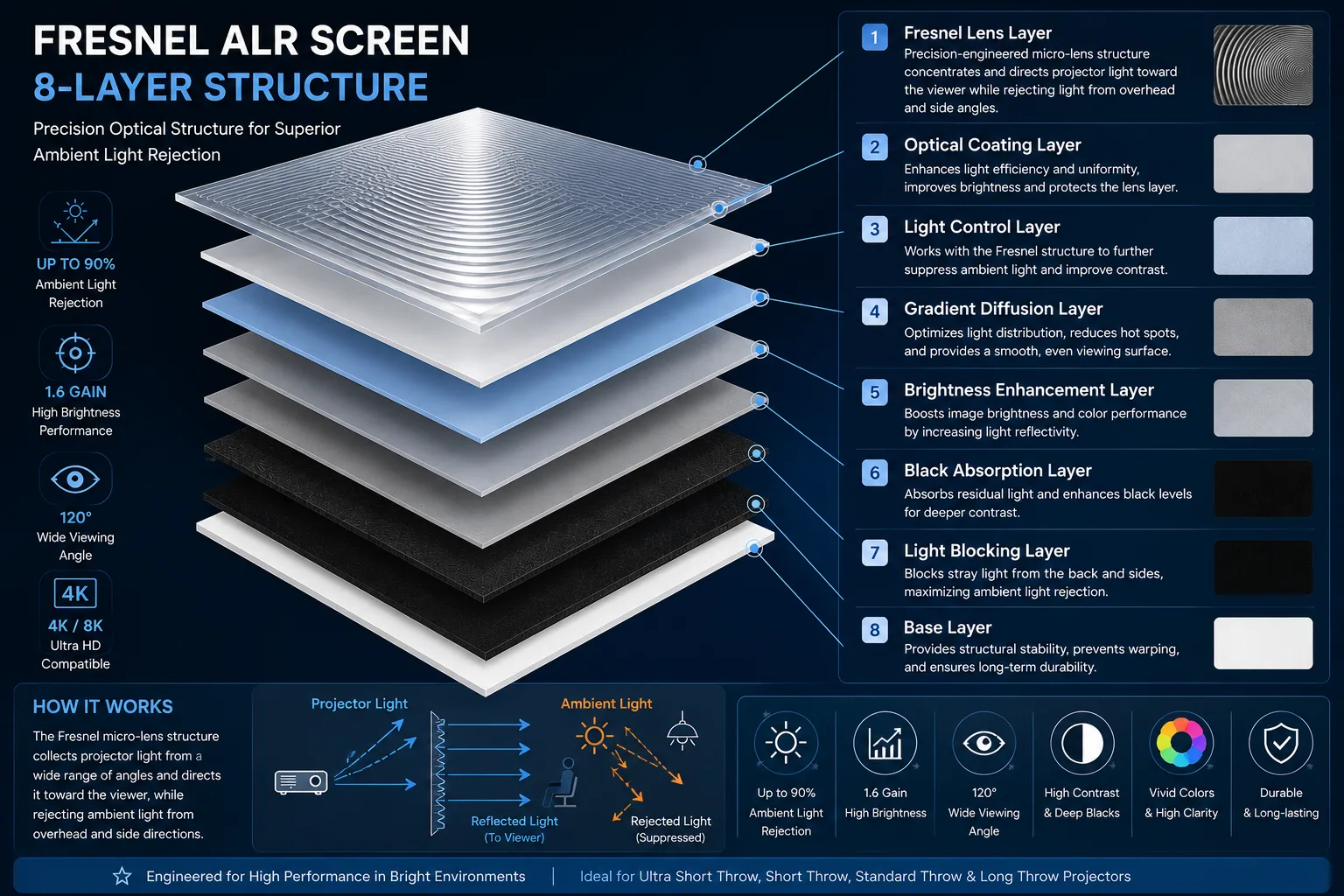

Fresnel Screen Structure
The Cynthiascreen Fresnel ALR Screen utilizes a precision-engineered multi-layer optical structure designed to maximize projected light efficiency while reducing the influence of ambient light. The screen surface consists of millions of microscopic Fresnel optical elements arranged in a concentric pattern.
The upper optical layer is responsible for directing projected light toward the viewing area, while the ambient light rejection layer helps minimize unwanted light from surrounding sources. The reflective layer enhances image brightness and contrast, and the substrate layer provides structural stability and long-term durability.
This advanced screen architecture ensures excellent image uniformity, high brightness retention, and superior visual performance for standard and long throw projection systems.

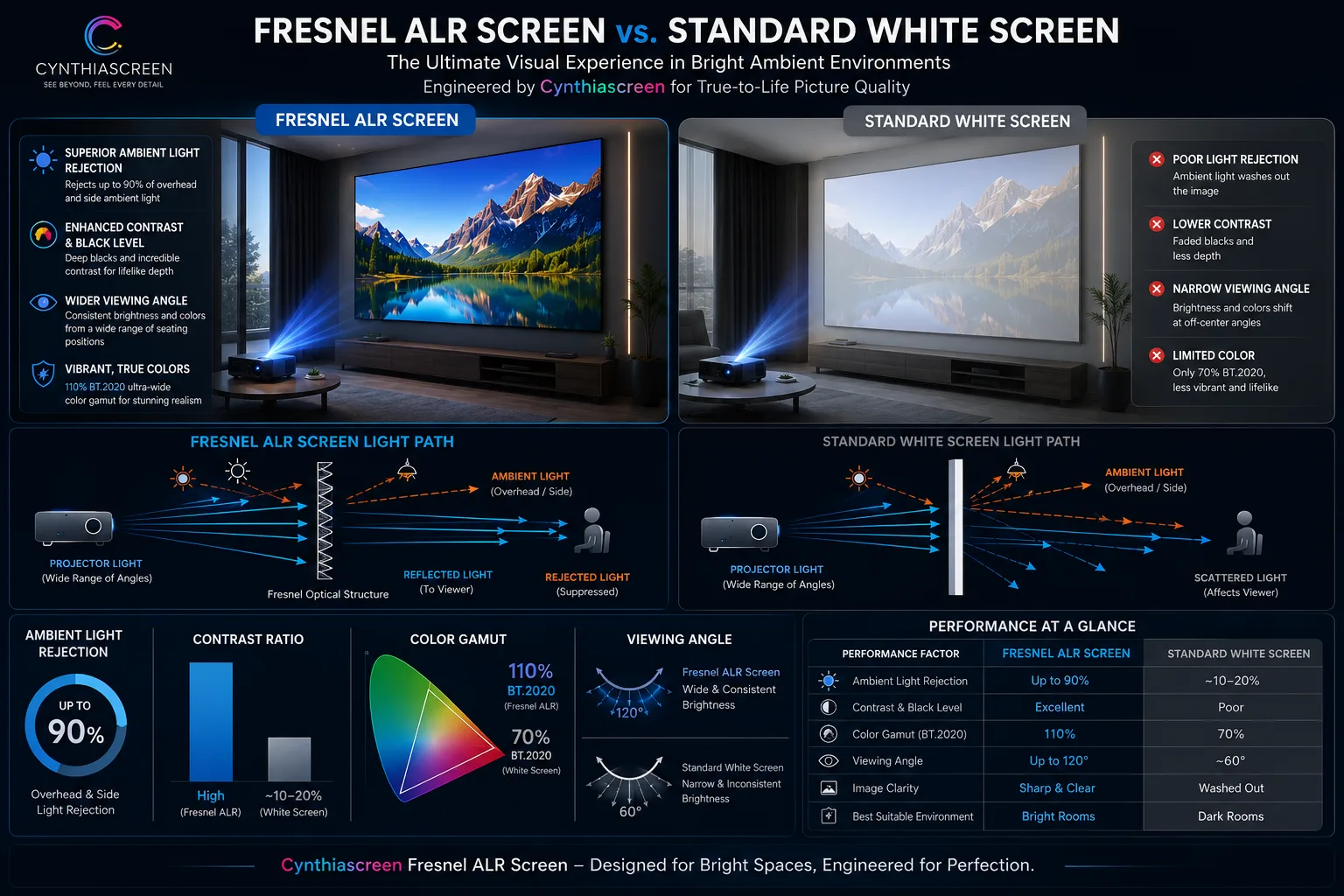

How Fresnel Ambient Light Rejection Technology Works
Unlike conventional projection screens that reflect light in all directions, Fresnel ALR technology is designed to selectively direct projector light toward viewers while reducing the impact of ambient light from ceiling fixtures, windows, and other surrounding sources.
The specially engineered Fresnel optical grooves capture and focus the projected light from the designated projector position, efficiently guiding it toward the audience. At the same time, ambient light arriving from different angles is either absorbed or redirected away from the viewing area.
This optical process significantly improves image brightness, contrast, and black levels, allowing the screen to maintain outstanding picture quality even in environments where complete light control is not possible.
The result is a brighter, sharper, and more immersive viewing experience with enhanced color accuracy and improved visual depth compared to traditional matte white projection screens.
| Models | Size | Viewing size | Frame width | Total Length (Including Frame) |
Total Height (Including) |
Packing size | G.W. |
|---|---|---|---|---|---|---|---|
| inch | mm | mm | mm | mm | mm | KGS | |
| CNF72HFS | 72"16:9 | 1600*900 | 10 | 1624 | 924 | 1680*180*100 | 8 |
| CNF80HFS | 80"16:9 | 1770*996 | 10 | 1794 | 1020 | 1850*180*100 | 8.4 |
| CNF84HFS | 84"16:9 | 1814*1021 | 10 | 1838 | 1045 | 1930*180*100 | 8.7 |
| CNF90HFS | 90"16:9 | 1991*1120 | 10 | 2015 | 1144 | 2108*180*100 | 9.3 |
| CNF92HFS | 92"16:9 | 2035*1145 | 10 | 2059 | 1169 | 2130*180*100 | 9.5 |
| CNF100HFS | 100"16:9 | 2212*1245 | 10 | 2236 | 1269 | 2280*180*100 | 10.5 |
| CNF110HFS | 110"16:9 | 2434*1369 | 10 | 2458 | 1393 | 2520*180*100 | 11 |
| CNF120HFS | 120"16:9 | 2655*1494 | 10 | 2679 | 1518 | 2730*180*100 | 12 |
