Grey Crystal ALR Ultra Slim Frame Screen
Experience brighter images, natural colors, and enhanced contrast with the Cynthiascreen Grey Crystal ALR Screen. Featuring a premium optical surface with approximately 0.8 gain and up to 70% ambient light rejection, it delivers excellent visual performance in living rooms, home theaters, conference rooms, and other multi-purpose spaces.
Unlike conventional white projection screens, the Grey Crystal material improves image depth and contrast while maintaining wide viewing angles and natural color reproduction. Compatible with virtually all projector types, including UST, short throw, standard throw, and long throw projectors, it offers exceptional flexibility for a wide range of applications.
Universal Projector Compatibility
Compatible with UST, Short Throw, Standard Throw & Long Throw Projectors
Up to 70% Ambient Light Rejection
0.8 Gain Optical Surface
Enhanced Brightness & Contrast
Natural Color Reproduction
Wide 170° Viewing Angle
Ultra Slim 10mm Frame Design
4K Ultra HD Compatible
8K Ready
HDR Supported
Ideal for Living Room Cinema
Custom Sizes Available
OEM & ODM Manufacturing Support
The Cynthiascreen Grey Crystal ALR Ultra Slim Frame Screen is a versatile projection screen designed to deliver enhanced image brightness, improved contrast, and natural color reproduction in environments with ambient light. Featuring an advanced Grey Crystal optical surface with approximately 0.8 gain, the screen efficiently reflects projected light while reducing the impact of surrounding light sources, resulting in a brighter and more immersive viewing experience.
Unlike traditional white projection screens, the Grey Crystal material helps maintain image clarity and color accuracy even in living rooms and other multi-purpose spaces where complete light control may not be available. With ambient light rejection performance of up to 70%, it provides an excellent balance between brightness, contrast, and viewing comfort.
One of the key advantages of the Grey Crystal ALR Screen is its universal compatibility. The material is suitable for Ultra Short Throw (UST), Short Throw, Standard Throw, and Long Throw projectors, making it an ideal solution for a wide range of projection systems and installation environments.
The ultra-slim 10mm aluminum frame creates a modern television-like appearance while ensuring excellent screen flatness and long-term durability. Combined with support for 4K Ultra HD, 8K Ready, and HDR content, the screen delivers vivid images, realistic colors, and impressive detail for movies, sports, gaming, education, and business applications.
Ideal Applications
• Living Room Cinema
• Home Theater
• Gaming Room
• Conference Room
• Classroom & Training Room
• Commercial Display
Key Benefits
• Grey Crystal Optical Surface
• Up to 70% Ambient Light Rejection
• 0.8 Gain Enhanced Brightness
• Universal Projector Compatibility
• Supports UST, Short Throw, Standard Throw & Long Throw Projectors
• Wide 170° Viewing Angle
• Natural Color Reproduction
• Improved Contrast Performance
• Ultra Slim 10mm Frame Design
• 4K / 8K Compatible
• HDR Supported
• Custom Sizes Available
• OEM & ODM Manufacturing Support
Grey Crystal Optical Surface
The Cynthiascreen Grey Crystal ALR material is engineered to provide an ideal balance between brightness, contrast, and ambient light resistance. Built on a high-quality PVC substrate and coated with a specially formulated optical layer, the material enhances image clarity while maintaining natural color reproduction and excellent viewing uniformity.
The fine-textured Grey Crystal surface utilizes directional reflection technology to efficiently direct projector light toward viewers while reducing the impact of surrounding ambient light. This optical design improves image visibility in living rooms, conference rooms, and other environments where complete light control may not be available.
With a gain of approximately 0.8 and ambient light rejection performance of up to 70%, Grey Crystal material offers brighter images than many conventional ALR surfaces while maintaining wide viewing angles and excellent color accuracy.

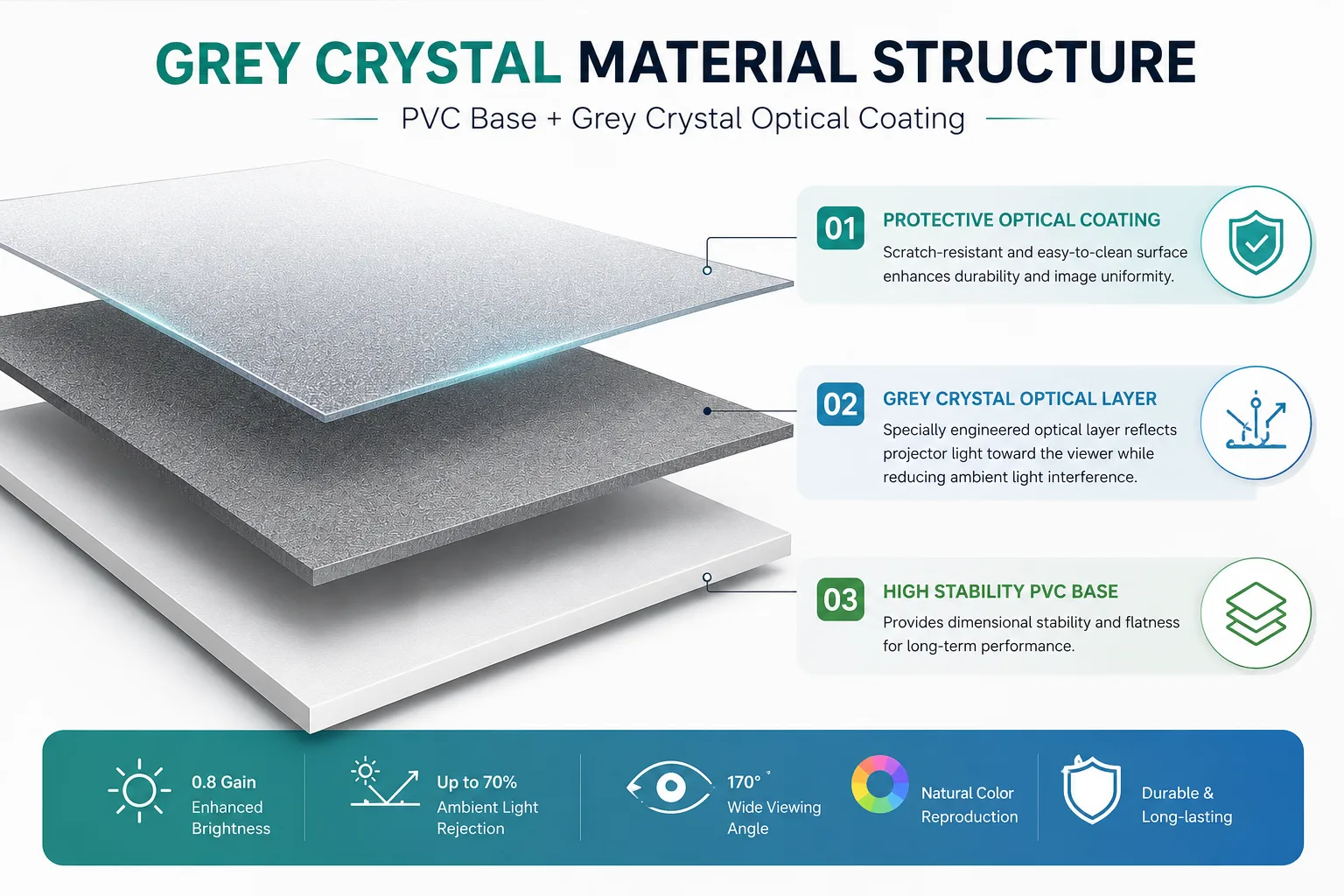

Grey Crystal ALR Screen Material
The Grey Crystal screen material consists of a durable PVC substrate combined with a precision optical coating. The surface features a refined micro-textured finish that enables controlled light reflection while preserving image uniformity across the entire screen.

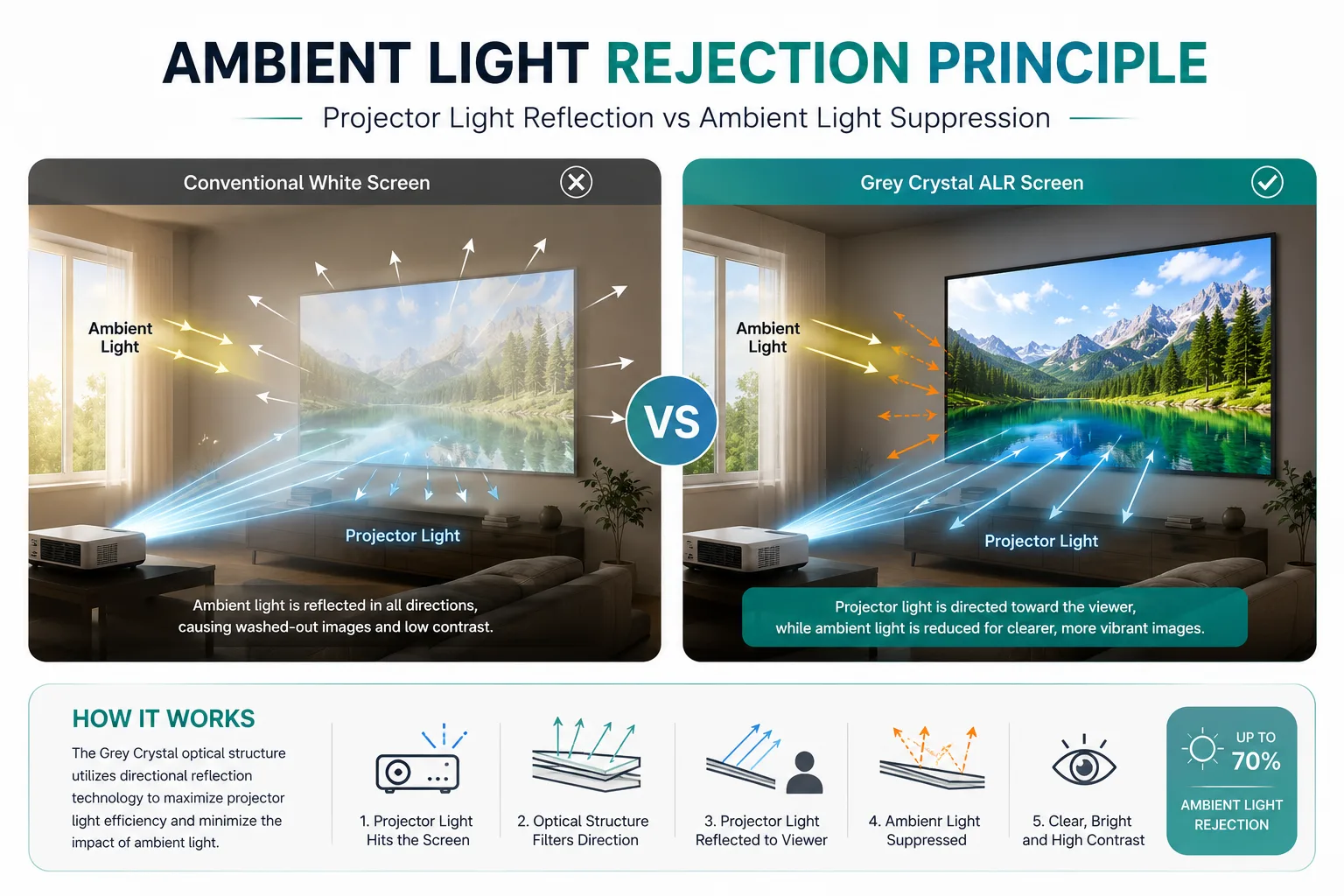

How ALR Screen Work
Traditional white projection screens reflect light in all directions, including ambient light from windows, lamps, and surrounding environments. This often results in washed-out images and reduced contrast. Grey Crystal ALR technology utilizes directional reflection principles to selectively reflect projector light toward the viewing area while suppressing part of the surrounding ambient light. As a result, viewers experience: • Brighter Images • Better Contrast • Improved Black Levels • More Accurate Colors • Enhanced Daytime Viewing Performance
| Models | Size | Viewing size | Frame width | Total Length (Including Frame) |
Total Height (Including) |
Packing size | G.W. |
|---|---|---|---|---|---|---|---|
| inch | mm | mm | mm | mm | mm | KGS | |
| CNF72HGC | 72"16:9 | 1600*900 | 10 | 1624 | 924 | 1680*180*100 | 8 |
| CNF80HGC | 80"16:9 | 1770*996 | 10 | 1794 | 1020 | 1850*180*100 | 8.4 |
| CNF84HGC | 84"16:9 | 1814*1021 | 10 | 1838 | 1045 | 1930*180*100 | 8.7 |
| CNF90HGC | 90"16:9 | 1991*1120 | 10 | 2015 | 1144 | 2108*180*100 | 9.3 |
| CNF92HGC | 92"16:9 | 2035*1145 | 10 | 2059 | 1169 | 2130*180*100 | 9.5 |
| CNF100HGC | 100"16:9 | 2212*1245 | 10 | 2236 | 1269 | 2280*180*100 | 10.5 |
| CNF110HGC | 110"16:9 | 2434*1369 | 10 | 2458 | 1393 | 2520*180*100 | 11 |
| CNF120HGC | 120"16:9 | 2655*1494 | 10 | 2679 | 1518 | 2730*180*100 | 12 |
Frequently Asked Questions
1. What is a Grey Crystal ALR Screen?
A Grey Crystal ALR (Ambient Light Rejecting) Screen is a projection screen designed to reduce the impact of ambient light while improving image contrast and black levels. Its special optical coating reflects projector light toward the viewer while minimizing interference from surrounding light sources.
2. How does a Grey Crystal Screen improve image quality?
The grey optical surface helps absorb unwanted ambient light, resulting in:
Higher perceived contrast
Deeper black levels
Better shadow details
Improved color saturation
Enhanced viewing experience in bright rooms
3. Is a Grey Crystal Screen suitable for daytime viewing?
Yes. Grey Crystal ALR screens provide significantly better image quality than standard white projection screens during daytime viewing.
4. What projector types are compatible with Grey Crystal ALR Screens?
Grey Crystal ALR screens are compatible with:
Standard throw projectors
Long throw projectors
- UST Projectors
Laser projectors
DLP projectors
LCD projectors
Home theater projectors
Business projectors
For Ultra Short Throw (UST) projectors, a dedicated Fresnel or CLR screen is usually recommended for optimal performance.
5. What screen sizes are available?
Common sizes include:
84″
92″
100″
110″
120″
135″
150″
Custom sizes are also available for OEM and project requirements.
6. Does the screen support 4K and 8K projection?
Yes. The Grey Crystal material features a smooth optical surface capable of supporting:
Full HD (1080P)
4K UHD
8K resolution
HDR content
The screen preserves fine image details without visible texture interference.
7. What is the gain of the Grey Crystal ALR Screen?
Typical gain ranges from 0.8 to 1.0 depending on the material version and screen size. This gain level provides a balance between ambient light rejection, contrast enhancement, and wide viewing angles.
8. What is the viewing angle?
The Grey Crystal ALR screen offers a wide viewing angle of approximately 160°, allowing viewers seated in different positions to enjoy consistent image quality.
9. Can it be used for home theater applications?
Absolutely. Grey Crystal ALR screens are widely used for:
Home theaters
Living room cinemas
Gaming rooms
Conference rooms
Educational environments
Commercial presentation spaces
10. Is the screen easy to install?
Yes. The fixed frame structure is designed for straightforward wall mounting. The tensioned screen material ensures a perfectly flat viewing surface without wrinkles.
11. Does the screen require special maintenance?
No special maintenance is required. Simply clean the surface with a soft microfiber cloth. Avoid abrasive cleaners, strong chemicals, or excessive pressure during cleaning.
12. What is the difference between a Grey Crystal Screen and a White Screen?
Compared with traditional white screens, Grey Crystal ALR screens provide:
Better ambient light rejection
Higher contrast
Deeper blacks
Reduced image washout
Improved performance in bright environments
White screens generally perform best in completely dark rooms.
13. Can the screen be customized?
Yes. We offer OEM and ODM customization including:
Custom sizes
Frame colors
Logo branding
Packaging customization
Special project requirements
15. Why choose CynthiaScreen Grey Crystal ALR Screens?
CynthiaScreen Grey Crystal ALR Screens offer:
Enhanced contrast and black levels
Ambient light rejection technology
4K/8K compatibility
HDR support
Wide viewing angle
Durable aluminum frame
Professional OEM & ODM manufacturing support
Global project and distribution experience
