Motorized Projection Screen
A classic electric projection screen designed for smooth operation, clean installation and stable image display. With a durable motorized system, flat viewing surface and elegant black borders, it is suitable for home theaters, meeting rooms, classrooms, training spaces and commercial AV installations.
Smooth Electric Operation
Quiet & Reliable Motor System
Flat & Stable Viewing Surface
Elegant Black Borders for Better Image Focus
Wall or Ceiling Mounted Installation
Suitable for Home, Office & Commercial Use
Multiple Screen Materials Available
Custom Sizes Supported
OEM / ODM Service Available
Motorized Wall/Ceiling Screen
Overview
Designed for Real-World Use
The Classic Motorized Projection Screen is designed for smooth electric operation, clean installation and reliable viewing performance. With a simple wall or ceiling mounted structure, the screen can be easily integrated into home theaters, offices, classrooms, meeting rooms and commercial AV spaces.
Performance and Practical Value
The motorized system allows the screen to lower and retract smoothly, helping users create a professional viewing environment with minimal effort. When not in use, the screen can be rolled back into the housing to keep the room clean and organized.
Ideal Applications
- Conference rooms
- Classrooms
- Home entertainment
- Commercial AV projects
Key Advantages
- Wall or ceiling mounting
- Motorized retraction
- Protected screen surface
- Simple daily operation
Available Configurations
- Screen material
- Case size and color
- Control system
- Plug and voltage
Support for Professional Buyers
- Sample orders for product evaluation
- OEM and private-label support
- Technical documents and marketing materials
- Export packaging and shipping support
Selection Note
Confirm mounting position, power supply, control method, ceiling height and required viewing size.

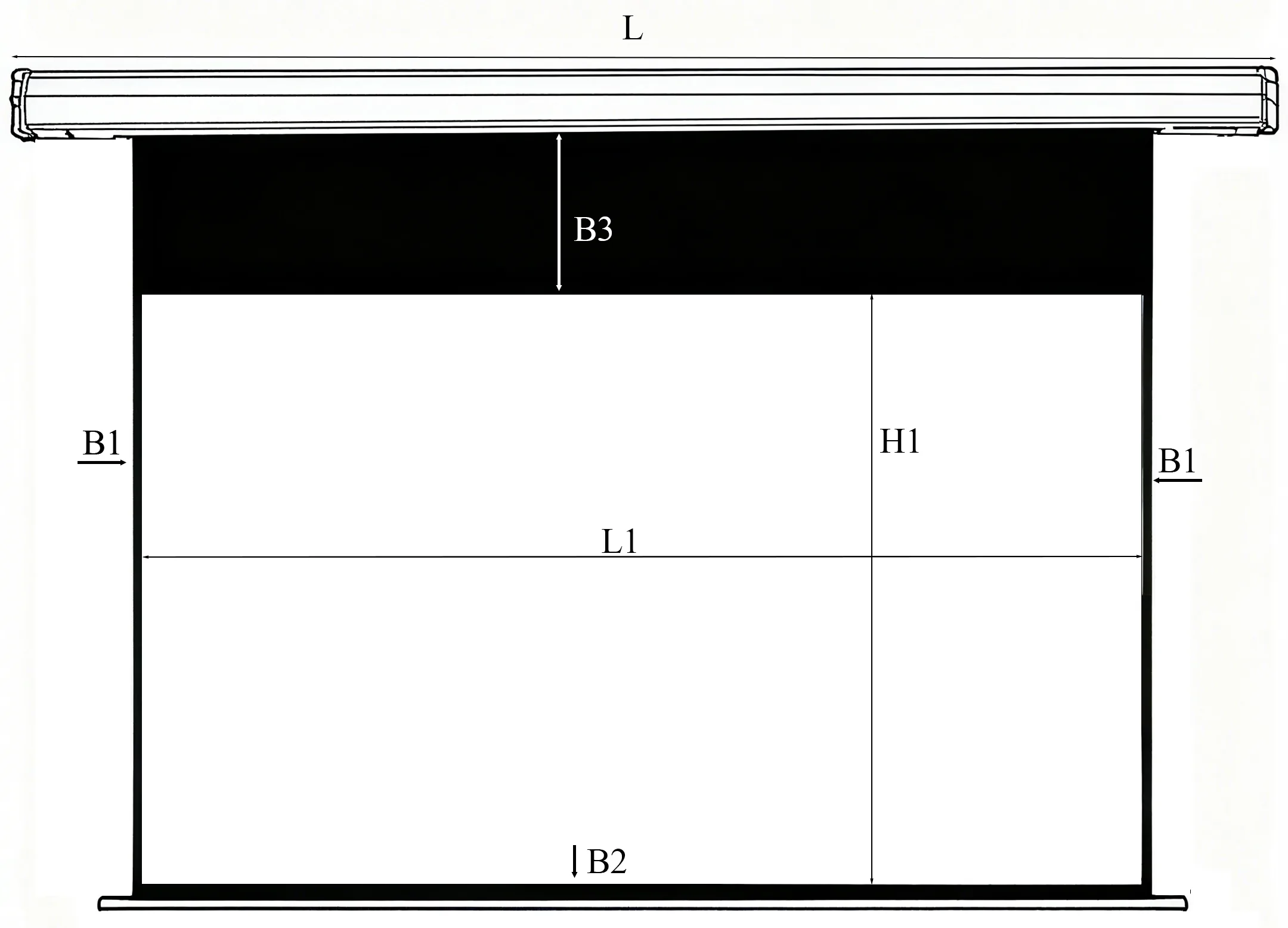

| Models | Size | Viewing Size (L1*H1) | Casing Size (d*h) | Length (L) | Height (H) | B1 | B2 | B3 | Packing Size | N.W. | G.W. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | mm | mm | mm | mm | mm | mm | mm | KGS | KGS | |
| CMP7070 | 70*70 | 1780*1780 | 78*78 | 1930 | 1885 | 30 | 30 | 30 | 2100*140*130 | 11 | 12 |
| CMP8080 | 80*80 | 2030*2030 | 78*78 | 2180 | 2135 | 30 | 30 | 30 | 2300*160*140 | 12.5 | 14 |
| CMP8484 | 84*84 | 2130*2130 | 78*78 | 2280 | 2235 | 30 | 30 | 30 | 2400*160*140 | 13 | 15 |
| CMP9696 | 96*96 | 2440*2440 | 78*78 | 2590 | 2545 | 30 | 30 | 30 | 2720*160*140 | 15 | 17 |
| CMP108108 | 108*108 | 2750*2750 | 90*90 | 2900 | 2875 | 30 | 30 | 30 | 3100*160*160 | 17 | 19 |
| CMP120120 | 120*120 | 3050*3050 | 90*90 | 3200 | 2175 | 40 | 40 | 40 | 3400*160*160 | 20 | 23 |
| CMP8443 | 84" 4:3 | 1700*1280 | 78*78 | 1850 | 1345 | 30 | 30 | 30 | 2050*140*130 | 10 | 12 |
| CMP10043 | 100" 4:3 | 2030*1520 | 78*78 | 2180 | 1645 | 30 | 30 | 30 | 2400*140*130 | 12 | 14 |
| CMP12043 | 120" 4:3 | 2440*1830 | 78*78 | 2590 | 1955 | 30 | 30 | 40 | 2750*160*140 | 14 | 16 |
| CMP15043 | 150" 4:3 | 3050*2280 | 90*90 | 3200 | 2415 | 40 | 40 | 40 | 3270*160*140 | 18 | 20 |
| CMP84169 | 84" 16:9 | 1860*1045 | 78*78 | 1910 | 1445 | 40 | 40 | 300 | 2150*140*130 | 11.5 | 13 |
| CMP92169 | 92" 16:9 | 2030*1145 | 78*78 | 2180 | 1540 | 30 | 30 | 300 | 2300*160*140 | 12 | 14 |
| CMP100169 | 100" 16:9 | 2210*1250 | 78*78 | 2360 | 1645 | 30 | 30 | 300 | 2650*160*140 | 13 | 15 |
| CMP106169 | 106" 16:9 | 2350*1320 | 78*78 | 2500 | 1720 | 30 | 30 | 300 | 2700*160*140 | 14 | 16 |
| CMP120169 | 120" 16:9 | 2650*1500 | 78*78 | 2800 | 2040 | 30 | 30 | 300 | 3100*160*140 | 16 | 18 |
| CMP133169 | 133" 16:9 | 2940*1660 | 78*78 | 3090 | 2205 | 40 | 40 | 300 | 3160*160*140 | 18 | 20 |
| CMP150169 | 150" 16:9 | 3320*1870 | 90*90 | 3470 | 2435 | 40 | 40 | 300 | 3750*160*160 | 22 | 25 |
Frequently Asked Questions
Learn more about the classic motorized projection screen, including operation, installation, material options, applications and customization support.
What is a motorized projection screen?
A motorized projection screen is an electric screen that can be lowered or retracted by a motor system. It is commonly used in home theaters, offices, classrooms, meeting rooms and commercial AV installations where convenient operation and a clean appearance are required.
How does the electric operation work?
The screen is equipped with a motorized lifting system. Users can control the screen to move up or down through a wall switch, remote control or other compatible control options depending on the configuration.
Is the motor quiet during operation?
Yes. The motor system is designed for smooth and quiet operation, making it suitable for environments such as home theaters, conference rooms, classrooms and training spaces where low noise is important.
Can the screen be installed on both wall and ceiling?
Yes. The classic motorized projection screen supports both wall-mounted and ceiling-mounted installation. This allows flexible installation according to different room layouts and project requirements.
Is the screen surface flat after lowering?
The screen surface is designed to provide a stable and smooth viewing area for daily projection use. For applications that require higher flatness, a tab-tension motorized screen can also be recommended.
What is the function of the black borders?
The black borders help define the viewing area and improve visual focus. They also give the projected image a cleaner and more professional appearance, especially in home theater and presentation environments.
What screen materials are available?
Multiple projection screen materials are available, such as matte white, grey, acoustic transparent and other customized fabric options. The suitable material depends on the projector type, room lighting and application environment.
Is this screen suitable for home theater use?
Yes. The motorized projection screen is suitable for home theaters and media rooms. When not in use, the screen can be retracted into the housing to keep the room clean and organized.
Can it be used in offices, classrooms and commercial spaces?
Yes. This screen is widely used in meeting rooms, training rooms, classrooms, offices, hotels, showrooms and other commercial AV spaces where reliable electric projection is needed.
Can the size be customized?
Yes. Custom sizes and aspect ratios can be supported according to project requirements. Common formats include 16:9, 16:10, 4:3 and other customized specifications.
Can the housing color or packaging be customized?
Yes. Housing color, packaging, branding and other details can be customized for OEM / ODM projects, depending on order quantity and project requirements.
Is OEM / ODM service available?
Yes. OEM and ODM services are available for distributors, AV integrators and project-based customers. Custom screen materials, sizes, packaging, branding and product configurations can be discussed according to your market and application needs.
Send a B2B Inquiry
Tell us about your project, required quantity and specifications. Our team will follow up with a quotation.
For Distributors and OEM Buyers
This screen is available for distributor, wholesale and private-label projects. Our team can help confirm the suitable material, size, electrical configuration and packaging for your market.
Procurement & Customization
- Sample orders available
- MOQ and lead time confirmed by model and quantity
- Logo, packaging, manuals and barcode labels
- EU, UK and US plug options
- 110V and 220V options for applicable motorized models
Documents & Supply Support
- Catalogs, manuals and technical data sheets
- Product photos and videos for distributors
- CE, RoHS, ISO 9001 and available test reports
- EXW, FOB, CIF and DDP trade terms
- Product selection and compatibility guidance
Before You Order
Please share the projector model, screen size, installation environment, destination market, estimated quantity and OEM requirements. Specifications and compatibility should be confirmed before placing a bulk order.
